Description

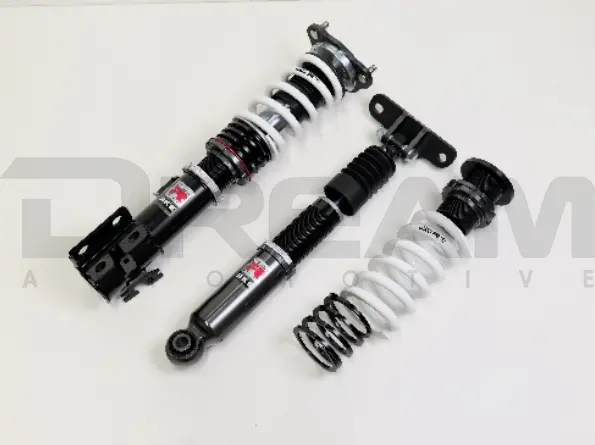

The “ultimate multi-performer” with refined driving comfort the joy of manipulating it at will, and the depth of its bosom that adapts from circuits to winding roads.
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | – | – |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Spherical bearing | Spherical bearing |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | – | – |
| Helper spring (Spring rate N/mm) |
〇 (19.8) | 〇 (19.8) |
Ride Height mm
| Factory *2 |
Adjustable range High-Low *3 |
Driveable range High-Low *4 |
||
|---|---|---|---|---|
| FRONT | Ride height *1 | 657 | 682～557 | 682～610 |
| Against stock | -26 | -1～-126 | -1～-73 | |
| REAR | Ride height *1 | 657 | 680～600 | 680～600 |
| Against stock | -25 | -2～-82 | -2～-82 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Driveable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem. (Caution) Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 118 ( 12.0 ) | 157 ( 16.0 ) |
| Free height (mm) | 150 | 170 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 858 / 652 | 535 / 451 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 45 / 42 | 56 / 41 |
* The value of the damping force is at piston speed of 0.1m/sec.
COMPATIBLE VEHICLES

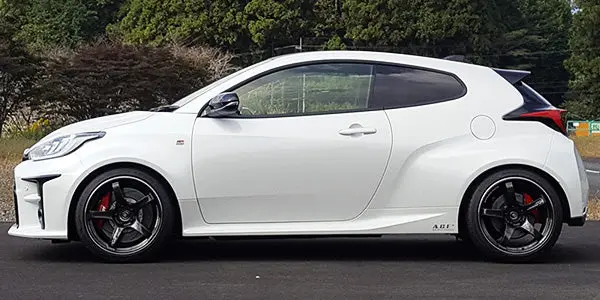

- Toyota GR Yaris | G16E-GTS | 2021-2023
- Toyota GR Yaris | G16E-GTS | 2024+
FITTING DETAILS
Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire.
