Description
Radium Engineering Honda kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware. First, a 8AN PTFE fuel line is installed to the fuel hanger pump outlet, as shown below
The 8AN PTFE fuel hose runs behind the fuel tank. A high flow fuel filter is mounted to the LH side of the fuel tank using a 2-piece billet mount. Elements are either 10 micron stainless (-03) or 6 micron microglass (-05).

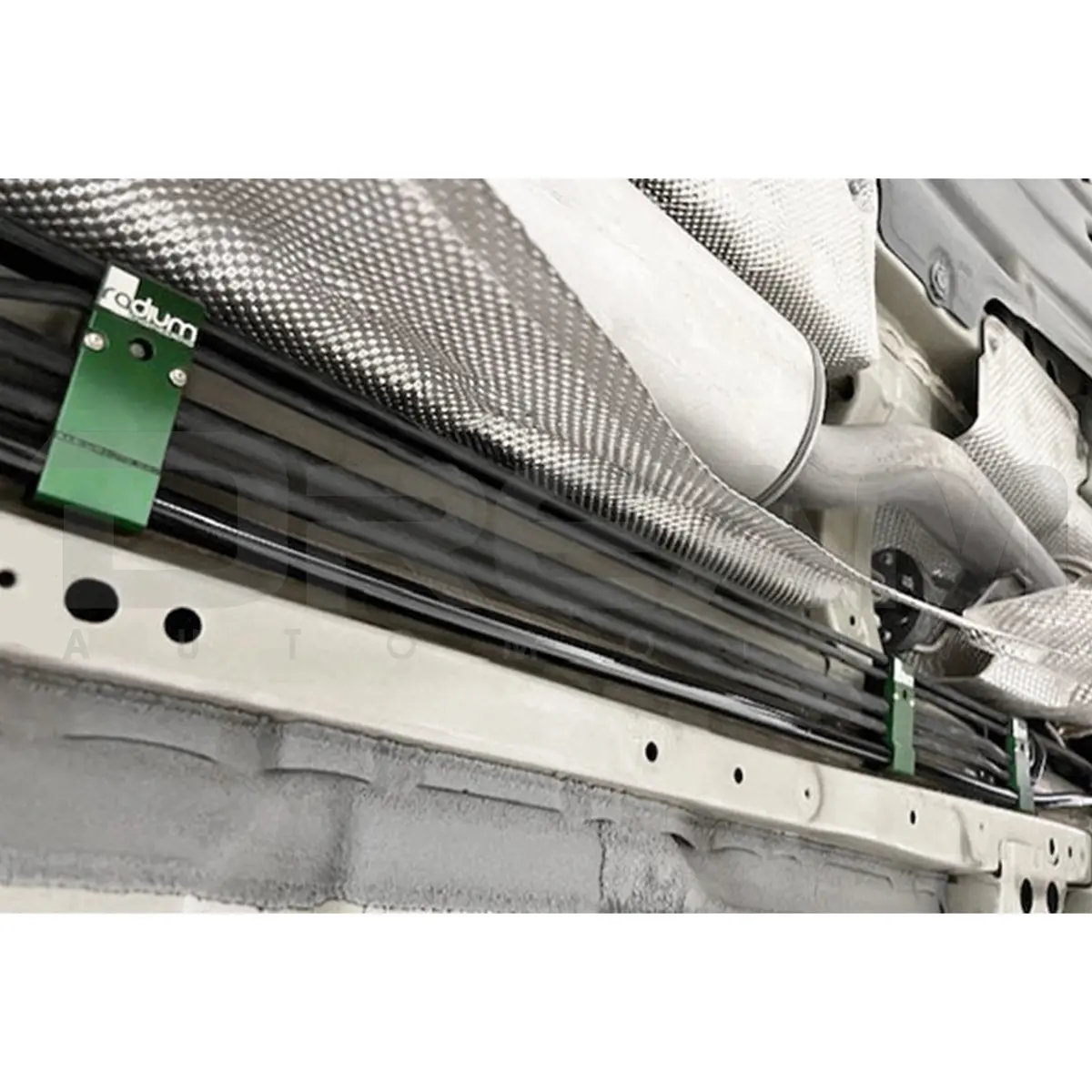

To accept the new large feed line, new billet aluminum fuel/brake line retainers (shown below) replace the factory plastic retainers.
A dual fuel pressure regulator (DFPR) is mounted on the firewall using OEM threaded holes. With the DFPR regulator, there are 2 independent fuel pressure outputs. For the OEM direction injection system, the black knob and a 0-100psi gauge is used to calibrate the LPFP fuel pressure. If an aftermarket port injection system is ever installed, there is a separate independent outlet port. A port injection system, an 8AN ORB DFPR adapter fitting, and a fuel line is all that would be required. These plumbing kits come with a 8AN ORB plug for this port. NOTE: Port injection fuel pressure is calibrated using the green knob.
TECH SPECS
- DFPR Fuel Pressure Regulator
- 0-100psi Fuel Pressure Gauge
- Filter (-03 Stainless or -05 Microglass)
- 8AN Fuel Filter Adapter Fittings
- 8AN and 6AN Fuel Hanger Fittings
- Fuel Brake Line Retainers (x3)
- 8AN PTFE Fuel Feed Hoses
- SAE Quick Connect Adapters
- Stainless Steel Hardware
- 5/32″ Vacuum Tubing
- Misc Adapter Fittings
COMPATIBLE VEHICLES
- Honda Civic Type R | FK8 K20C1 2.0T | 2017-2022
FITTING DETAILS
Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire.
AVAILABILITY
4 Weeks
