Description

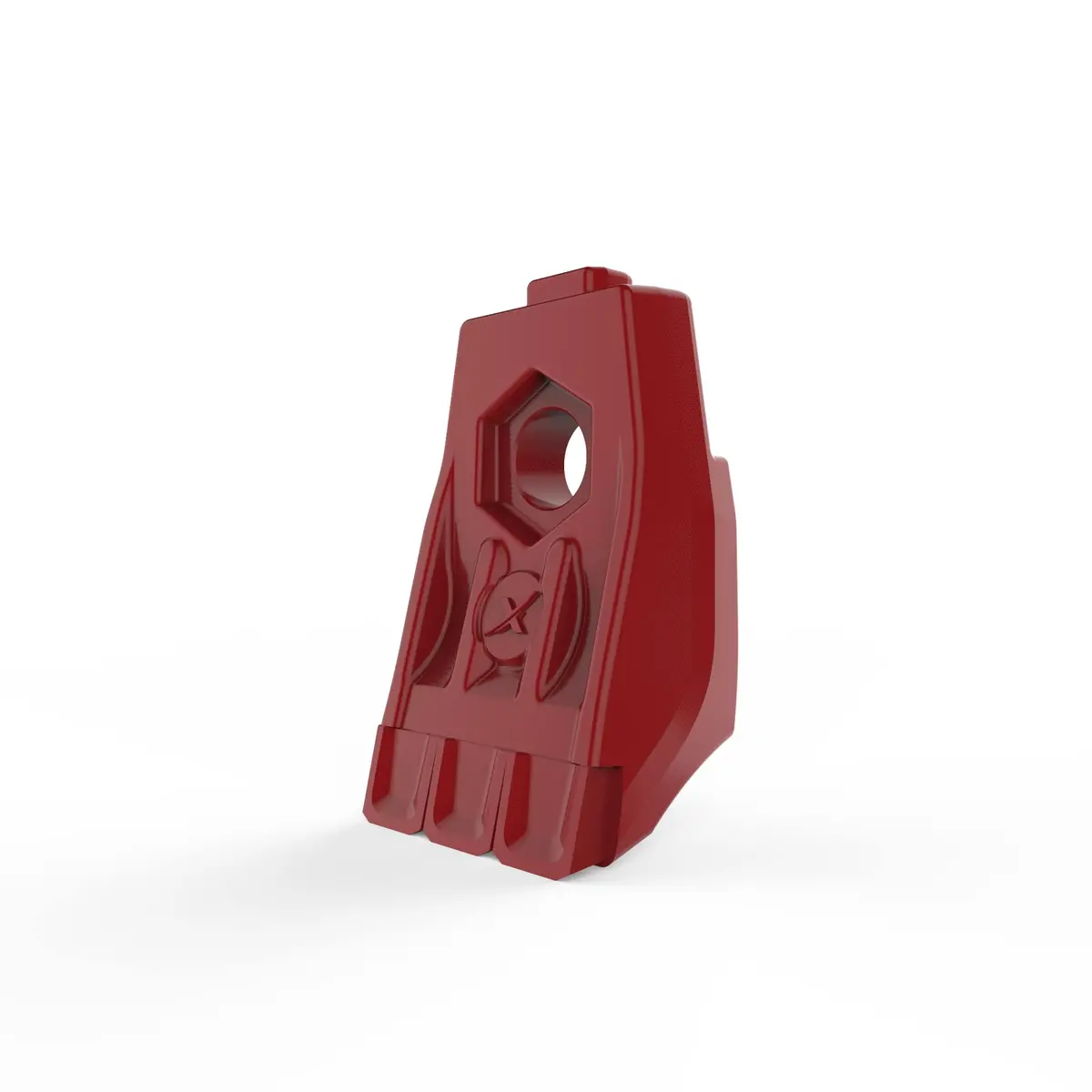

Top of the line G1 of the carbide tips are built with the highest grade of tungsten carbide cobalt composition. The product is built with hight quality carbon alloy steel and hardened for optimal high impact, wear and shock resistance. The carbides are secured on with high quality braze and manufacturing procedures. The tooth housings are made with high quality forged casings and shot blasted for rustproofing protection.
Cutter Type – Wood
Steel Type – 42CrMo
Steel Hardness – HRC40-42
Bolt Size – M20 x 1.5 x 80mm
Weight – 1.27kg
Length – 107.95mm
Width – 63.50mm
Length – 50.8mm
Specification
| Fits OEM Model (s) | DAH-080C, DAH-100C / 100D / 100E, DAH125D, DAH-150D / 150E / 150Er, DAF-180D, DAF-180E, DAF 225E, DAF 225Ex, DAF250Ex |
| Replaces OEM Part# | Part# FC1049M |
| Number of Teeth per Drum/Wheel | DAH-150D / 150E / 150Er – 21 Teeth |
| Cutter Type | Triple Carbide Tips w/ Sharp Edges |
| Alloy Body Hardness | HRC40-42 |
| Alloy Body Composition | 42CrMo |
| Bolt(s) Required | Single M20 x 1.5 x 80mm Hex Head w/Nut & Washer |
| Weight | 1.27kg |
| Application | Used in all around condition. Added high quality tungston carbide tips. Ideal for soils bearing rocky conditions. |
