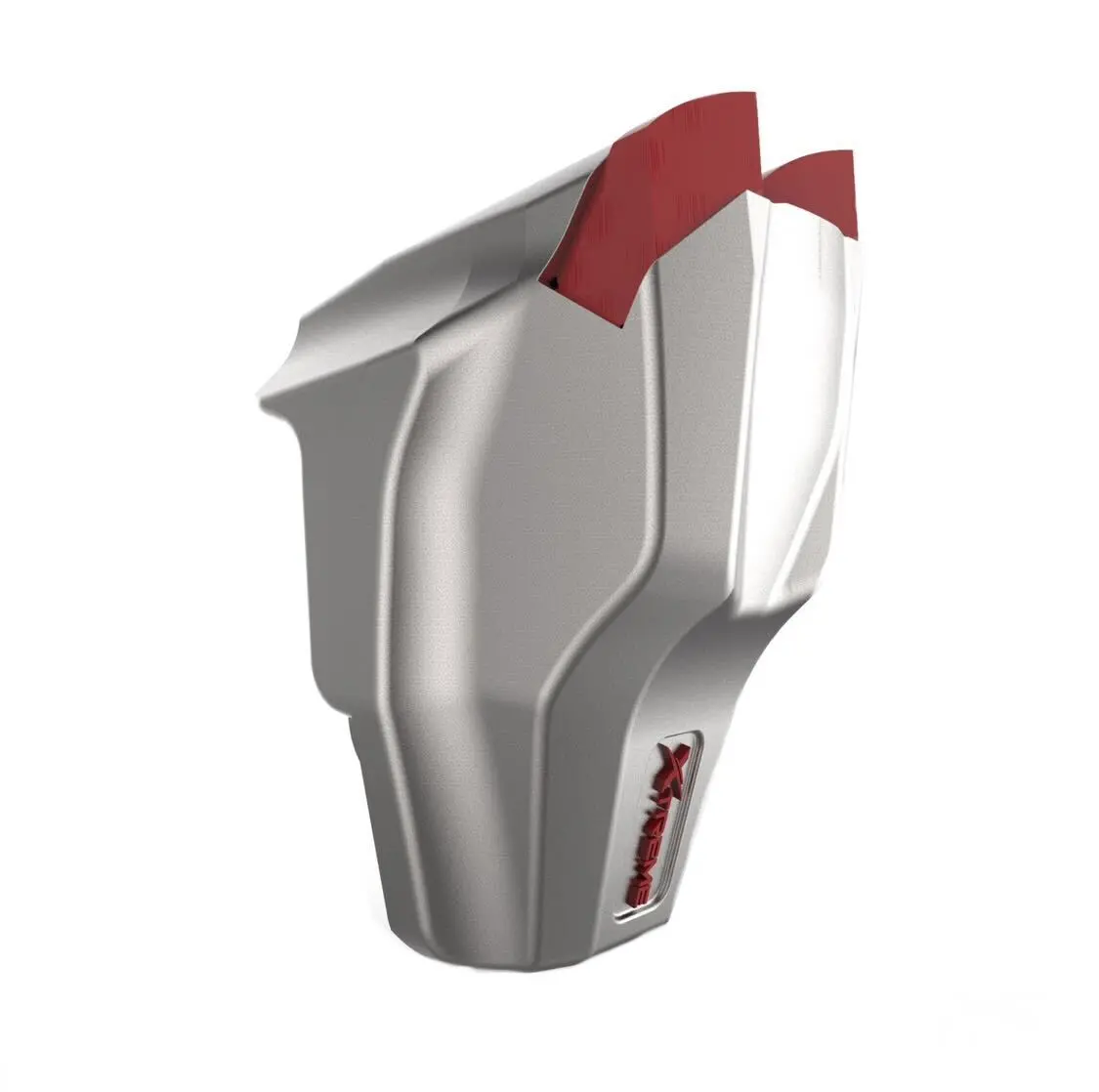

Description
*** DOES NOT FIT FAE C/3 TOOTH DESIGN MODELS USING A T-BOLT/NUT FASTENER ***
Top of the line G1 of the carbide tips are built with the highest grade of tungsten carbide cobalt composition. The product is built with hight quality carbon alloy steel and hardened for optimal high impact, wear and shock resistance. The carbides are secured on with high quality braze and manufacturing procedures. The tooth housings are made with high quality forged casings and shot blasted for rustproofing protection.
Cutter Type – Wood
Steel Type – 42CrMo
Steel Hardness – HRC40-42
Single bolt required – M20 x 1.5 x 60 SKT
Weight – 1.52kg
Length – 60.33mm
Width – 73.03mm
Width – 47.63mm
Specification
| Fits OEM Model (s) |
UMM/S-200 | UMM/S-225 | UMM/S-250 |
| Replaces OEM Part# |
FAE Type C Teeth Part# 11530012-K |
| Number of Teeth per Drum/Wheel | UMM/S-200 Qty 44 + 2 Sidescrappers | UMM/S-225 Qty 50 + 2 Sidescrappers | UMM/S-250 Qty 56 + 2 Sidescrappers |
| Cutter Type | Premium Dual G1 Carbide Tips Built with the Highest Grade of Tungsten Carbide Cobalt Composition |
| Alloy Body Hardness | HRC40-42 |
| Alloy Body Composition | 42CrMo |
| Side Anvil/Holder Protection | Extended Side Armour Protection to Prevent the Anvil Holder from Wearing |
| Thread Type | M20x1.5 |
| Bolt(s) Required | Qty 1 (M20 x 1.5 x 60mm, Grade 12.9, 17mm Socket Head) |
| Washer(s) Required | Qty 1 (M20 Serrated Ribbed Lock Washer) |
| Weight | 1.52Kg |
| Application | Wood Chipping |
