Description

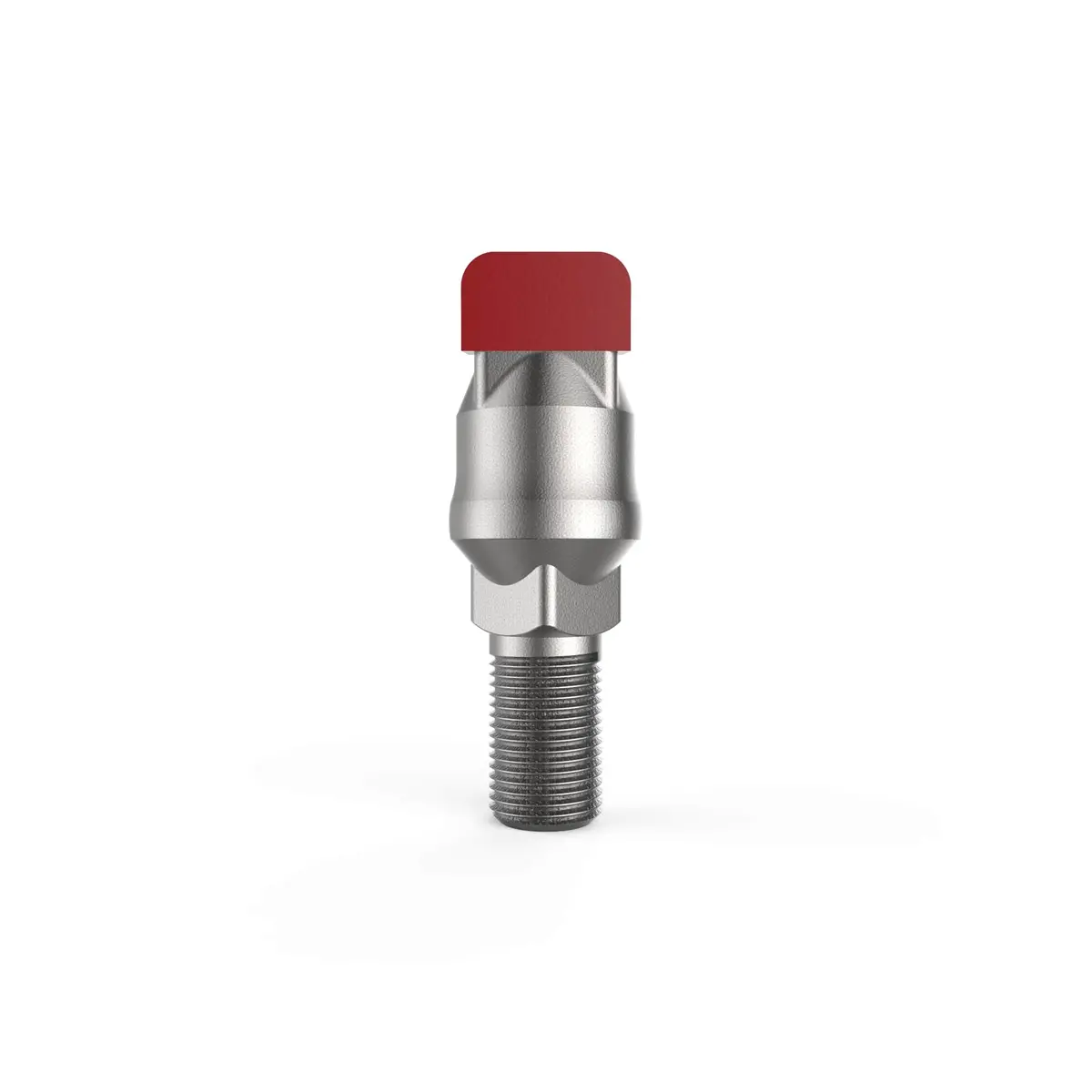

Top of the line G1 of the carbide tips are built with the highest grade of tungsten carbide cobalt composition. The product is built with hight quality carbon alloy steel and hardened for optimal high impact, wear and shock resistance. The carbides are secured on with high quality braze and manufacturing procedures. The tooth housings are made with high quality forged casings and shot blasted for rustproofing protection.
Cutter Type – Wood
Steel Type – 42CrMo
Steel Hardness – HRC40-42
Single bolt required – M16 x 1.5 x 40mm SKT / M16 x 1.5 x 70mm SKT
Weight – 1.56kg
Length – 92.08mm
Width – 57.15mm
Width – 47.43mm
Specification
| Fits OEM Model (s) |
UMM/DT-200| UMM/DT-225| UMM/DT-250 |
| Replaces OEM Part# |
111530007-K /111530001 |
| Number of Teeth per Drum/Wheel | UMM/DT-200 Qty 42 + 2 Sidescrapers UMM/DT-225 Qty 46 + 2 Sidescrapers UMM/DT-250 Qty 50 + 2 Sidescrapers |
| Cutter Type | Premium Dual G1 Carbide Tips Built with the Highest Grade of Tungsten Carbide Cobalt Composition |
| Alloy Body Hardness | HRC 40-42 |
| Alloy Body Composition | 42CrMo |
| Thread Type | M16 x 1.5 |
| Bolt(s) Required | Qty 1 (M16 x 1.5 x 70mm, Grade 12.9, 14mm Allen Socket Head) | Qty 1 (M16 x 1.5 x 40mm, Grade 12.9, 14mm Allen Socket Head) |
| Washer(s) Required | Qty 2 (M16 Serrated Ribbed Lock Washer) |
| Weight | 1.56Kg |
| Application | Wood Chipping |
