AVO Stage 1 Turbocharger Kit Featuring 2049 Turbo – Designed for Toyota GR86 with FA24 Engine

Description

Avo Turbo Kit – Stage 1 – Complete Billet Turbo kit for GR86 FA24

Avo’s turbo kit is designed speciffically for the FA24 engine and features a 2049/9 turbocharger which has a 9 blade turbine to reduce back pressure to suit the larger capacity engine.
Avo has tetsted this kit on a Japanese spec BRZ with full 3″ open exhaust and at 0.55 bar boost the car produced 372PS and 49kg torque. UK power outputs may vary depending on exhaust configuration.

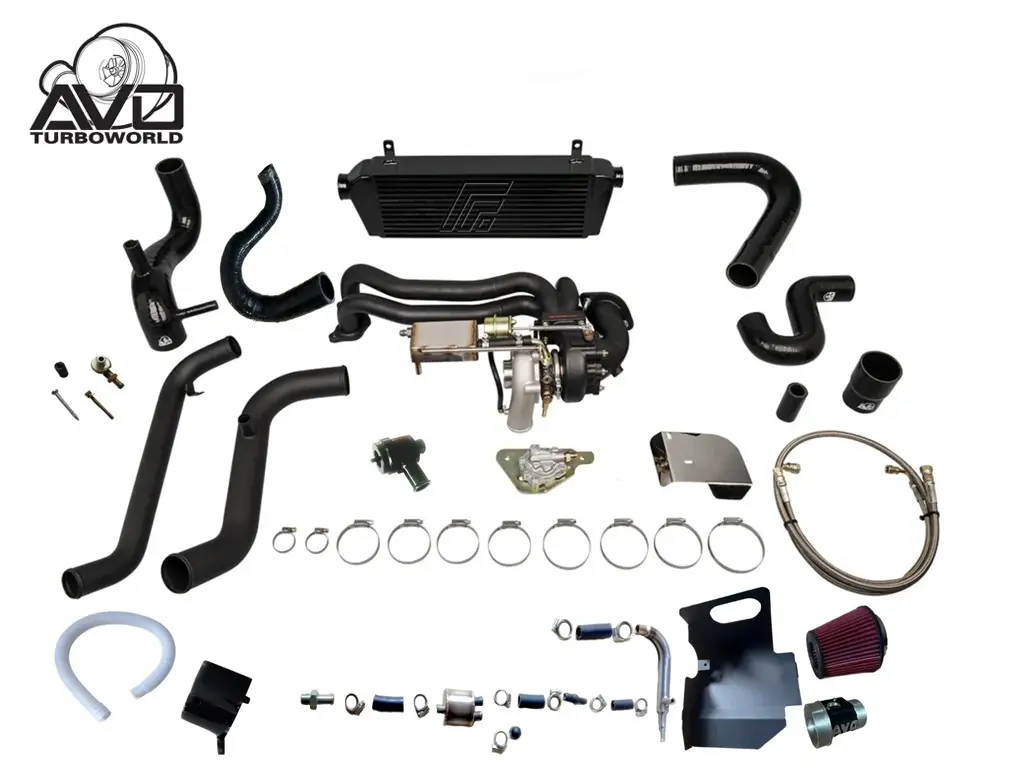

Features:

• 2049/9 Billet turbocharger – Oil and water cooled – 0.50A/R exhaust housing – 360 degree thrust bearing – 8 psi actuator
• Ceramic Coated Unequal Turbo Manifold & 2 1/2” Turbo Outlet
• 87mm Bar & Plate Intercooler with a combination of Steel & Silicon Intercooler & Intake Piping/Hosing
• Sports Filter with Heat Shield
• Turbo Mechanical Oil Suction Pump with Adaptor Plate
• Turbo Oil Reservoir Tank
• Oil Filler Neck, Turbo PCV Valve & Oil Breather Tank System
• OEM Blow-Off Valve
• Braided Turbo Oil Supply Line & Braided Oil Pump Line
• Windshield Washer Tank
• Fits both RHD & LHD
• Low mounted turbo kit gives low centre of gravity

Designed as a full bolt on kit with no cutting or welding required!

Also one of the rare kits that retain the original front bumper reinforcing beam (crash bar).

We offer a full fitting service, please contact us for a quotation.
Mapping: Fensport can supply Ecutek, Pro Ecu and tuning for this package, please see our GR86 Turbo Remap for further details of our forced induction (FI) mapping services.

Note: The turbo kit replaces the standard exhaust manifold which has a catalytic converter fitted.  For this reason the turbo kit is for off road use only.
